Page 1 of 1

Server query

Posted: Mon Mar 13, 2017 3:30 pm
by Stern
Does anyone here knows what form of data this "query" request should be to be read correctly by server ?

http://int64.org/docs/gamestat-protocols/gamespy2.html
This is the request of info that has map name, rules, players and all that.

Re: Server query

Posted: Thu Mar 16, 2017 11:52 am
by Stern
Little update here:
I managed to figure out in what form it must be sent.

Obj.Pascal code:

Code: Select all

Sdata: array [0..9] of byte = ($FE,$FD,$00,$43,$4F,$52,$59,$FF,$FF,$FF);
...
UdpSocket1.SendBuf(Sdata,sizeof(Sdata));
This gets return data size about 250 (if server is empty).

Re: Server query

Posted: Wed Mar 29, 2017 10:07 am
by Stern
Here is a main part of the request code in Pascal.

https://1drv.ms/t/s!Aj4b71jV4JhLgnctBazR2FIySqks

Re: Server query

Posted: Wed Mar 29, 2017 2:21 pm
by Stern
Here is this program, for what i needed this queryng info.
Read readme to know how to use it !


EDIT:
https://1drv.ms/u/s!Aj4b71jV4JhLgwIpQ58DiTOwgd1k

Re: Server query

Posted: Sat Oct 21, 2017 5:22 am
by Jason
Those links aren't working for me, are you able to add the program as an attachment?

Re: Server query

Posted: Sat Oct 21, 2017 7:48 am
by Stern
I guess they are outdated, I have added some features to this program: JoinServer and ability to read out servers listed in H&D2 ServerList.bin Favorites list.
This way the program can be used in many ways, by Qtracker list, by custom list or HD2 favosrites list.

If i get rid of some minor flaws i add new link !

*Old version in last post (Edited link).

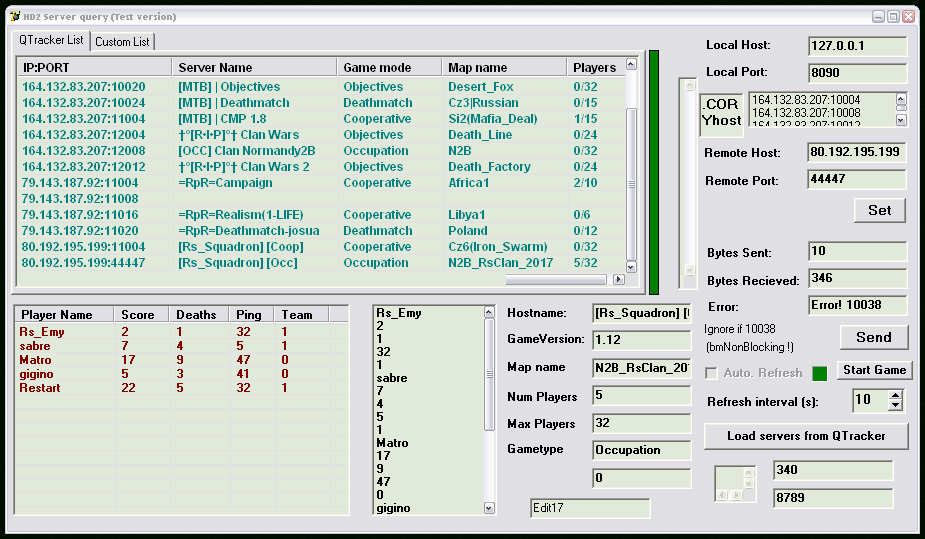

Found a screenshot of dev process :)

Re: Server query

Posted: Mon Oct 23, 2017 5:09 pm
by JonnySniper
You can also Scan the Servers without the bin file.
I Used this funtcion in rsc.

Re: Server query

Posted: Wed Oct 25, 2017 8:15 pm
by Stern
You mean ServerList.bin ?
Does this info get duplicated to somewhere else? Registry maybe ?
I use that .bin file only to read Favorites section.


I used RSC in 2014 for my server, worked well...and i teared it apart as you might remember...:) Resized it and found some hidden buttons...
i thought they might be hidden and dangerous buttons.

Re: Server query

Posted: Fri Oct 27, 2017 9:49 am
by JonnySniper
Stern wrote:
Wed Oct 25, 2017 8:15 pm
You mean ServerList.bin ?
Does this info get duplicated to somewhere else? Registry maybe ?
I use that .bin file only to read Favorites section.
Did you meant me?

Which hidden and dangerous Buttons?😂
In the Early Version i hide some Test Buttons for
the Development.
And i had a List of Special signs becouse Delphi
Doesnt Support it to this Time :)

In the last Version of rsc i added a Button, on side of Login... there you can Scan all hd2 Servers are currently Running.
But i include a Filter, that the ips doesnt Show 2 Times.
It use the same function as the Game as well.

Re: Server query

Posted: Fri Oct 27, 2017 2:26 pm
by Stern
It takes them from Qtracker ? Ip confirms it.
I use the same, but I also use the .bin file and custom server list.

//---------------------------------------------------------------------------------
I didnt find what ports RSC uses, its not in Readme.

Ok, i can find out this way... but not everyone knows how.
And currports can help...

Code: Select all

  object ServerSocket: TServerSocket
    Active = True
    Port = 12001
    ServerType = stNonBlocking
    ThreadCacheSize = 100000
    OnClientConnect = ServerSocketClientConnect
    OnClientDisconnect = ServerSocketClientDisconnect
    OnClientRead = ServerSocketClientRead
    OnClientError = ServerSocketClientError
    Left = 16
  end

  object Pong: TServerSocket
    Active = True
    Port = 11005
    ServerType = stNonBlocking
    ThreadCacheSize = 100000
    OnClientRead = PongClientRead
    Left = 64
  end
The pong is for online users ?

Readme mentiones: Note : take a look at blanks...
spaces ?
You could use trim:
Trim(text to trim)
It removes leading and trailing blanks...
JonnySniper wrote:
Fri Oct 27, 2017 9:49 am
Which hidden and dangerous Buttons?😂
In the Early Version i hide some Test Buttons for
the Development.
This was a topic in RpR, some players were hacking servers and there was a claim that RSC is used for this.
This is why I investigated it.

Re: Server query

Posted: Sun Oct 29, 2017 11:21 am
by JonnySniper
It takes them from Qtracker ? Ip confirms it.
I use the same, but I also use the .bin file and custom server list.
But why you need Serverlist?
My list is by QTracker yes.
I didnt find what ports RSC uses, its not in Readme.
For what need a client the Portnumbers.
Less is sometimes more.
No other Tool confirms his Ports...
but just for you, its 11005 and 12001 :roll:
Readme mentiones: Note : take a look at blanks...
spaces ?
You could use trim:
Trim(text to trim)
It removes leading and trailing blanks...
Its in the code , but sometimes it doenst work.
This was a topic in RpR, some players were hacking servers and there was a claim that RSC is used for this.
This is why I investigated it.
The Server Write all connections to its Logfile.
If Somebody would hack the Server by a client tool, the Server will Write his Ip in the file.
And this isnt able to hack, becouse its the first action in the connection event of Serversocket.

Re: Server query

Posted: Mon Oct 30, 2017 5:11 pm
by Stern
Serverlist.bin is just-in-case if Qtracker goes offline, then this program can be used other way... and some players does'nt even use Qtracker.
